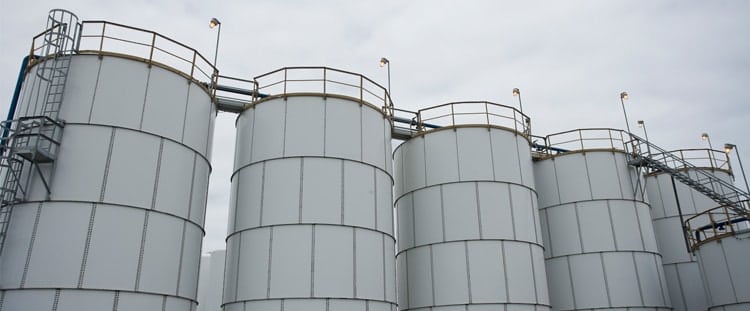

PetroTec® Tank Systems: The absolute standard for API-12B petroleum storage tanks. CST Storage was the first certified API-12B tank manufacturer in the world.  When it comes to petroleum storage, no other tank manufacturer can compete with the decades of experience and thousands of successful installations of CST Storage (formerly Columbian TecTank®).

    CST Storage originated its tank business in the oil industry.  Dating back to 1893, CST Storage pioneered the use of bolted steel storage tanks for petroleum applications. PetroTec engineers have working knowledge of the oil industry and its standards, and are well equipped to build the best tank value on the market with the lowest cost-per-unit volume stored.

    With over 250,000 epoxy tanks installed in more than 125 countries performing in thousands of applications, no other company can match CST Storage’s design, manufacturing and construction experience.

    Product: Bolted Liquid Storage Tank
    Application: Crude Oil, Process Water, Water, Drilling Mud
    Value Prop: Short Lead time & Fast install for small to large upstream & midstream applications

    Capacity Size API 12B
    Barrels Gal dia (ft) ht (ft) Monogr’d Principles CST Design
    100 4,200 9 8 X X
    200 8,400 9 16 X X
    250 10,500 15.5 8 X X
    300 12,600 9 24 X X
    500 21,000 15.5 16 X X
    750 31,500 15.5 24 X X
    1,000 42,000 21.5 16 X X
    1,500 63,000 21.5 24 X X
    2,000 84,000 29.5 16 X X
    3,000 126,000 29.5 24 X X
    5,000 210,000 38.5 24 X X
    10,000 420,000 55 24 X X
    12,000 504,000 59.5 24 X
    15,000 630,000 65 24 X x
    20,000 840,000 80 24 X x
    28,000 1,176,000 92 24 X x
    57,000 2,394,000 124 26 X x

    API-12B Monogrammed: API approved and audited.
    API-12B Principles: Larger tanks designed by CST to API-12B principles. Tanks designed to CST standards and optimized for best value.
